Industrial Water Chiller/Water Cooled Water Chiller/Scroll Type Water Cooled Instant Chiller

FOB Price:

US 12,000-15,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Month

Port:

Any port of China Mainland

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

MGREENBLT

Products Model:

Instant Chiller

Products Details
Company Profile

Quick Details

Brand Name: MGREENBLT

Model Number: Instant Chiller

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Export Plywood Case for Instant Chiller
Delivery Detail: Within 15 Days after Payment

Specifications

Instant Chiller
1.Temperature range: 3 degree C~35 degree C
2. CE certificate
3. 14-month quality warranty

Industrial Water Chiller/Water Cooled Water Chiller/Scroll Type Water Cooled Instant Chiller

Product Description

Parameters of water cooled instant chiller

Model	Unit	MG-50W(D)
Nominal cooling capacity	kcal/h	134332
Nominal cooling capacity	KW	153.2
Input power	KW	48.5
Set temp. range	0ºC~50ºC
Power supply	3PH-380V-50HZ
Refrigerant	Type	R22/R134a/407c
Refrigerant	Type of control	Thermostatic expansion valve
Compressor	Type	Hermetic scroll
Compressor	Power(kw)	43
Condenser	Type	Shell and tube
	Cooling water flow(m3/h)	33
	Inlet and outlet pipe diameter (inch)	3"
Evaporator	Type	Tank with coil/shell and tube
	Chilled fluid flow(m3/h)	26.3
	Volume(L)	620
	Inlet and outlet pipe diameter (inch)	3"
Pump	Power(kw)	5.5
Pump	Lift(m)	23
Dimension	LWH(mm)	20009801960
Weight	kg	1380
Safety protection	Compressor over temperature,over current,high and low pressure,Phase sequence phase-missing

Applications of water cooled chiller

Widely used in plastics, electrical, chemicals, medicine, supersonic wave and printing and so on,
which can precisely control the temperature of modern industrial machines' requirement and
greatly improved the protection efficiency and product quality.

Workshop of water cooled chiller

---Top sales recommended product---

Air/water cooled scroll water chiller:1.5 - 184kw

Air/water cooled screw water chiller:109 - 2015kw

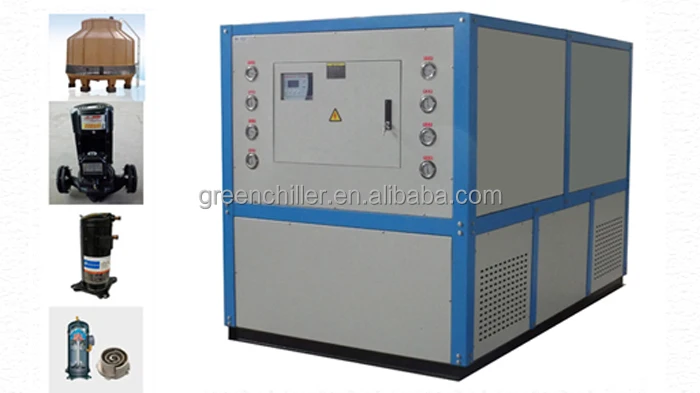

Water cooled chiller picture

The chiller shall be used with the cooling tower, no matter what the ambient temperature is the
refrigeration efficiency could remain the best

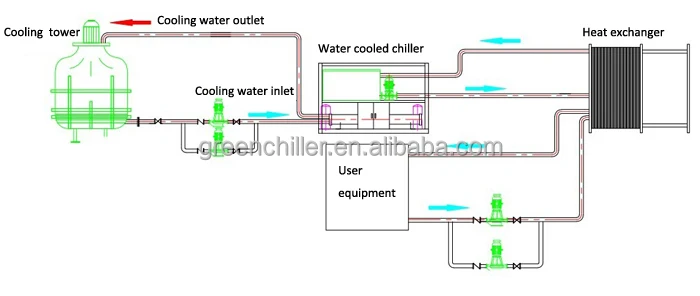

Water cooled chiller user system

Our Services

A.14 Months warranty.
B.All spare parts for the machine can be purchased with agent price from us
C.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.

Packaging & Shipping

The package is fumigation free plywood case,inside with polyethylene film.The package is strong enough for air or sea transportation.And designed with base,it is very easy for forklift handling.

Company Information

Shandong Mgreenbelt Machinery Co., Ltd is founded in 2003 with 120 employees and 10 technicians, covering 34000 square meters. We are a leading specialized manufacturer of industrial water chillers in Northern China.

Foreign customer's visit

Our customers are from all over the world,like Australia,America,England,Brazil,Sudan,India,Arab and etc

Certificate of water cooled chiller

FAQ

Q.Your above product is not my need,what should i do?

A:Pls tell us your requirement,our R&D team will give you a complete solution.

Q:What is the payment term?
A:We accept TT,Western Union,Paypal and etc

Q:What is the availability of the machine?
A:If the model is not in stock,it needs about 10~15 days lead time to produce.

If you have more question,pls feel free to contact our online service Lisa Liu.
Also you can contact us at:
Skype:mgreencompressor M:008613589109415(viber,whatspp,wechat)

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
