Water cooling type scroll chiller unit

Water cooling type scroll chiller unit

* Item: Water cooling type scroll chiller unit
* Cooling capacity:61kw
* Air cooling condenser:Shell and tube
* Refrigerant:R407c/R22
* Power supply:3ph-220/380/415/460V-50/60Hz
* Water flow:10.3m3/h

Feature of  water cooling type scroll chiller unit:

*Adopt international advanced scroll compressor ;

*Built-in stainless steel water tank/shell and tube evaporator ,high performance pump;

*Streamlined appearance design,durable coated steel frame;

*Controlled by microcomputer way;

*Work with efficient water cooling power;

*Comprehensive safety protection.

1. Configuration of  water cooling type scroll chiller unit

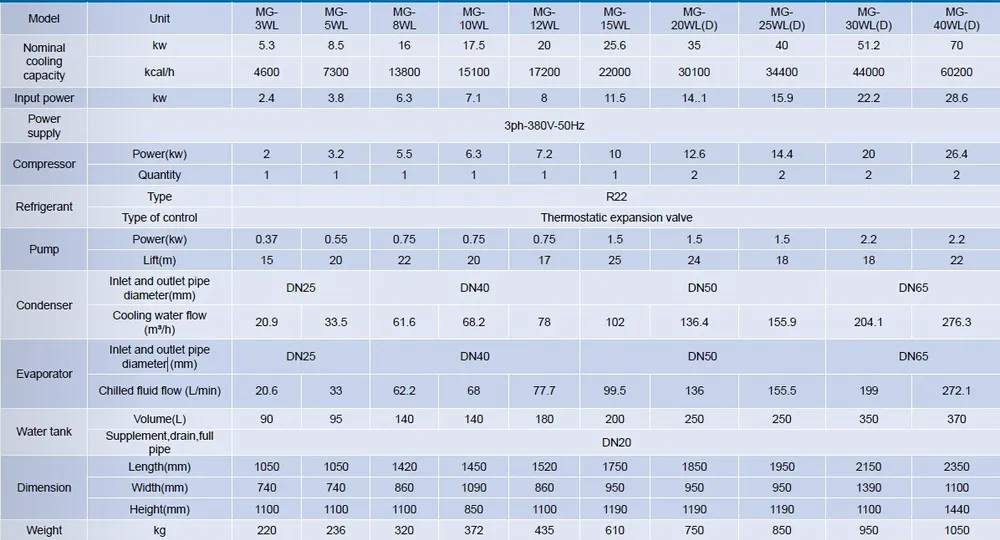

2. Parameters of  water cooling type scroll chiller unit

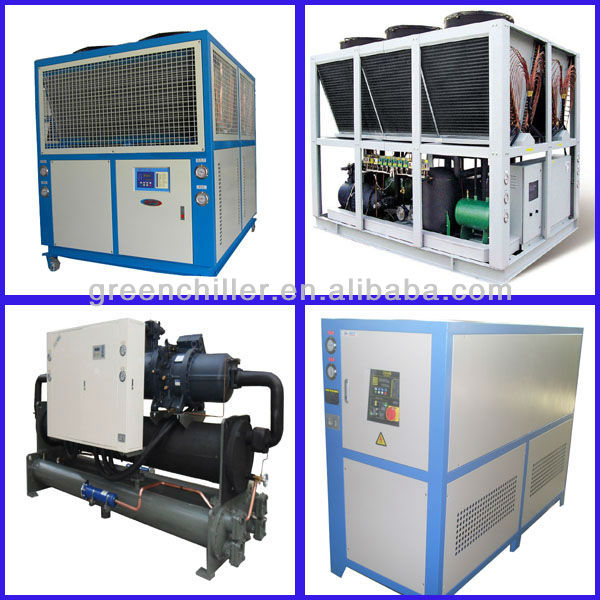

We aslo have other water chiller of this series:

Our chillers’ range:

Air/water cooled scroll water chiller:1.5 - 184kw

Air/water cooled screw water chiller:109 - 2015kw

Air/water cooled Low temperature water chiller:4.7 -218 kw

 3. Working principle of   water cooling type scroll chiller unit

4. Safety protection system of water cooling type scroll chiller unit
1). Lack of phase, reverse phase protector.
2). Motor overload protector.
3). High/low pressure protector.
4). Automatic alarm device for lacking of water.
5). Anti-freeze protector.
6). Coil verheated protector.
7). Water shortage protector.
8). Full-automatic temperature control system.

5.Applications of   water cooling type scroll chiller unit

Our water cooling type scroll chiller unit  have a wide range of application :such as plastic injection Industry,food and beverage industry,machinery industry,electonics and electroplating industry,medical and chemical.

I f you are in these fields,you can consult with us.I f you are not familiar with  water cooling type scroll chiller unit ,we can give you a projact .

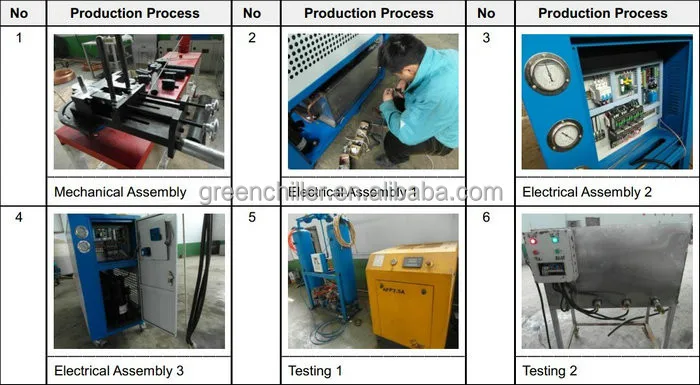

6.Production Process Of   water cooling type scroll chiller unit

   1.Cetificates Of  water cooling type scroll chiller unit

2.MGreenbelt is a leading specialized manufacturer of process cooling equipment in Northern China,founded in 2003,covering 34,000 square meters .

3.Our team of Mgreenbelt

A.14 Months warranty and life time technical maintenance offered.

B.All extra parts for the machine can be purchased with agent price from MGreenbelt.

C.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.

D. Free and Professional Training at our Factory under the relaxed condition.

Packing : Seaworthy Plywood Case for water cooling type scroll chiller unit
